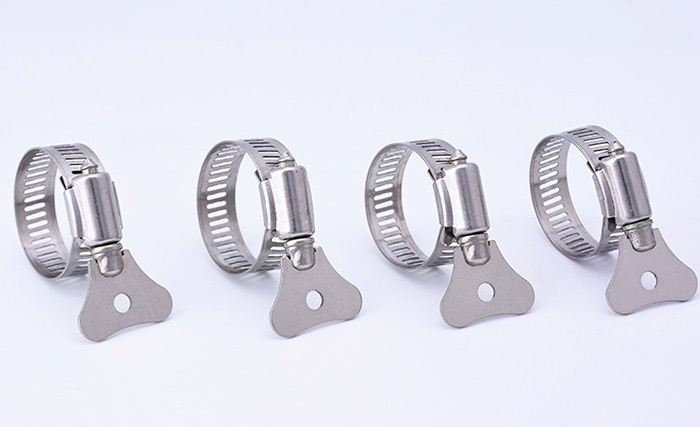

鐵手柄不銹鋼喉箍



專業生產201鐵手柄不銹鋼喉箍，品種齊全，尺寸范圍如下

１）帶寬8mm厚度0.6mm

2）帶寬12mm,厚度0.6mm

３）帶寬14mm,厚度0.6mm

4）帶寬18.5 ，厚度0.8

調節范圍：10-500，中間任意區間

表面處理：經過拋光處理；光亮無毛刺。

　　　　　材質201、304、316L

產品規格：從大到小各種規格，按客戶需求.

鐵手柄不銹鋼喉箍規格表：

直徑范圍	寬度	厚度	100只凈重
8-12	8	0.62	0.8
10-16	8	0.62	0.84
13-19	8	0.62	0.9
13-23	12	0.62	1.6
14-27	12	0.62	1.63
18-32	12	0.62	1.67
21-38	12	0.62	1.85
21-44	12	0.62	1.95
27-51	12	0.62	2.1
33-57	12	0.62	2.25
40-63	12	0.62	2.3
46-70	12	0.62	2.5
52-76	12	0.62	2.6
59-82	12	0.62	2.7
65-89	12	0.62	2.9
72-95	12	0.62	3
78-101	12	0.62	3.1
84-101	12	0.62	3.2
91-114	12	0.62	3.4

常規尺寸參考（各尺寸可以定制）



編號	英寸	公制尺寸	帶寬
1	1/2"	6-13mm	8mm
2	5/8"	6-16mm	8mm
3	9/13"	10-18mm	8mm
4	3/4"	11-20mm	8mm
5	7/8"	13-23mm	8mm
6	1"	16-25mm	8mm
7	1-1/16"	14-27mm	8mm
8	1-1/4"	18-32mm	8mm
9	1 1/2"	21-38mm	8mm
10	7/8"	13-23mm	12.7mm
11	1"	16-25mm	12.7mm
12	1-1/16"	14-27mm	12.7mm
13	1-1/4"	18-32mm	12.7mm
14	1-1/2"	21-38mm	12.7mm
15	1-3/4"	21-44mm	12.7mm
16	2"	27-51mm	12.7mm
17	2-1/4"	33-57mm	12.7mm
18	2-1/2"	40-63mm	12.7mm
19	2-3/4"	46-70mm	12.7mm
20	3"	52-76mm	12.7mm
21	3-1/4"	59-82mm	12.7mm
22	3-1/2"	65-89mm	12.7mm
23	3-3/4"	72-95mm	12.7mm
24	4"	78-101mm	12.7mm
25	4-1/4"	84-108mm	12.7mm
26	4-1/2"	91-114mm	12.7mm
27	4-3/4"	95-120mm	12.7mm
28	5"	105-127mm	12.7mm
29	5-1/4"	110-134mm	12.7mm
30	5-1/2"	118-140mm	12.7mm
31	5-3/4"	125-146mm	12.7mm
32	6"	130-152mm	12.7mm
33	6 1/4"	133-159mm	12.7mm
34	6-1/2"	143-165mm	12.7mm
35	6 3/4"	146-171mm	12.7mm
36	7"	155-178mm	12.7mm
37	8"	180-204mm	12.7mm





內銷產品包裝參數（僅供參考，出口的為2000個/件）





規格	使用范圍	帶寬	包裝尺寸	箱裝	重量
		mm	cm	pcs	Kgs	每袋裝
3/8"	6-10mm	8	50*30*17	5000	26	100
1/2"	6-13mm		50*30*18	5000	26.5	100
5/8"	6-16mm		50*30*20	5000	27	100
3/4"	11-20mm		50*30*21	5000	27.5	100
7/8"	13-23mm		50*30*23	5000	28	100
1"	16-25mm		50*30*25	5000	28.5	100
1-1/16"	14-27mm		50*25*20	2500	16.5	100
1-1/4"	18-32mm		50*25*25	2500	18	100





規格	公制范圍	帶寬	外箱尺寸	單箱個數	毛重/箱	一袋個數
3/4"	11-20mm	12.7	50x30x16	1000	17	100
7/8"	13-23mm		50x30x16	1000	18	100
1-1/16"	14-27mm		50x30x18	1000	19	100
1-1/4"	18-32mm		50x32x21	1000	20	100
1-1/2"	21-38mm		50x30x24	1000	21	100
1-3/4"	21-44mm		50*30*26	1000	22	100
2"	27-51mm		50*30*28	1000	23	100
2-1/4"	33-57mm		50*30*30	1000	24	100
2-1/2"	40-63mm		50*30*32	1000	25	100
2-3/4"	46-70mm		50*30*34	1000	26	100
3"	52-76mm		50x30x34	500	14	50
3-1/4"	59-82mm		50x30x37	500	14.5	50
3-1/2"	65-89mm		50x30x41	500	15	50
3-3/4"	72-95mm		50x30x44	500	15.5	50
4"	78-101mm		50x30x47	500	16	50
4-1/4"	84-108mm		50x30x50	500	16.5	50
4-1/2"	91-114mm		50x30x26	250	9.5	50
4-3/4"	95-120mm		50x30x30	250	10	50
5"	105-127mm		50x30x34	250	10.5	50
5-1/4"	110-134mm		50x30x37	250	11	50
5-1/2"	118-140mm		50x30x40	250	11.5	50
5-3/4"	125-146mm		50x30x43	250	12	50
6"	130-152mm		50x30x46	250	12.5	25
6 1/4"	133-159mm		50x30x48	250	13	25
6-1/2"	143-165mm		50x30x50	250	13.5	25
6 3/4"	146-171mm		50x30x54	250	14	25
7"	155-178mm		50x30x56	250	14.5	25
